Super Finishing Stones
Super Finishing Stones
- As the name suggests these stones are used to achieve very high quality finishes. In certain cases it is an extension of honing operation.
- We manufacture the widest range of super finishing stones for a vast number of applications. Super finishing stones are manufactured from high purity Aluminum oxide and silicon carbide in grits ranging from 500 to 1200 as per FEPA standards.
- On special requests from our customers we can also supply super finishing stones in grits as per Japanese Standards up to grit 6000.
- These can be supplied in any shape or size. We have developed very special bonds for these products based on the applications, which combine a good rate of stock removal with a capacity to produce excellent finishes.
- On hardened steel components finishes as high as 0.01 microns can be obtained. These stones are manufactured in vitrified bond and are recommended based on the application.
We serve in following industries:
- Super finishing the tracks of Ball Bearings (IR & OR)
- Cylindrical Bearings, Cylinder roller and taper bearings, angular and needle bearings
- Finishing of rollers and shafts, Piston pins etc
Previous
Next

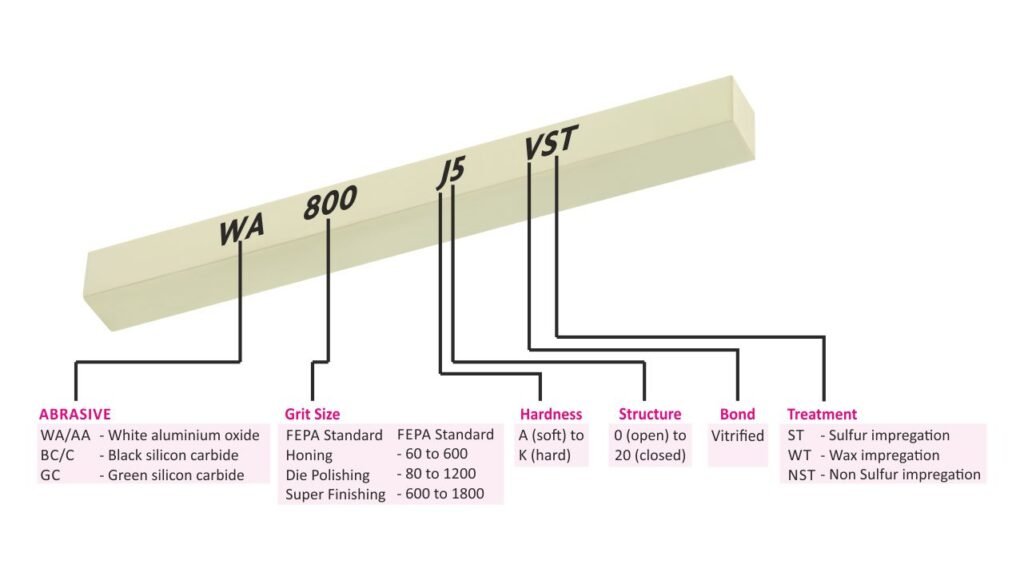

Nomenclature
Get More information about Products
Showcase your Elementor tab section with the full grid icon and content-box style.
Grade Availability | |||||
---|---|---|---|---|---|
Rough Operation | Finish Operation | ||||
AA600ST | AA800ST | AA1000ST | AA1200ST | AA1500ST | AA1800ST |
BC600ST | BC800ST | BC1000ST | BC1200ST | BC1500ST | BC1800ST |
GC600ST | GC800ST | GC1000ST | GC1200ST | GC1500ST | GC1800ST |
Graphite - N6000 |
Hardnase Availability | |||||
---|---|---|---|---|---|
C | D | E | F | K | |
Very Soft | Soft | Medium | Hard | Very Hard |
Shape Availability | ||||||
---|---|---|---|---|---|---|
Square | Rectangle |
Size Availability | ||||||
---|---|---|---|---|---|---|
Length | Width | Thickness | ||||
30 mm - 150 mm | 2 mm - 80 mm | 2 mm - 80 mm |
General Bearing Ring SFS Stone Size | |||||
---|---|---|---|---|---|
L X W X T | L = (20mm - 150 mm) , W = (4 mm - 60 mm ) , T = (4 mm - 13 mm ) | ||||
50X10X10 | 50X20X10 | 65X20X10 | 65X20X4 | 65X20X6 | 50X10X6 |
General size for Roller SFS | |||||
---|---|---|---|---|---|
80X40X3 | 80X40X4 | 80X40X5 | 80X40X6 | 80X40X8 | 80X50X10 |
80X50X3 | 80X50X4 | 80X50X5 | 80X50X6 | 80X50X8 | 80X50X10 |
60X40X4.5 | 60X40X6 | 60X40X8 | 60X40X10 | ||
50X40X3 | 50X40X6 | 50X40X8 | 50X40X10 |
